BM4-P

Deye Hybrid On Off Grid Inverter Available in Nigeria

Three Phase Hybrid Inverter | 29.9-50kW | 3/4 MPPT | HV Battery Supported

AC couple to retrofifit existing solar system
Max. 10 pcs parallel for on-grid and off-gridoperation; Support multiple batteries parallel
Max. charging/discharging current of 160A
High voltage battery, higher efficiency
6 time periods for battery charging/discharging
Support storing energy from diesel generator
100% unbalanced output

Model	SUN-29.9K-SG02HP3-EU-BM3-P	SUN-30K-SG02HP3 -EU-BM3-P	SUN-35K-SG02HP3 -EU-BM3-P	SUN-40K-SG02HP3 -EU-BM4-P	SUN-50K-SG02HP3 -EU-BM4-P
Battery Input Data
Battery Type	Lithium-ion
Battery Voltage Range(V)	160-800
Max. Charging/Discharging Current (A)	160
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of battery input	1
PV String Input Data
Max. PV Access Power (W)	59800	60000	70000	80000	100000
Max DC Input Power（W）	47840	48000	56000	64000	80000
Max DC Input Voltage（V）	1000
Start-up Voltage（V）	180
MPPT Voltage Range（V）	150-850
Rated DC Input Voltage(V)	600
Max Input Short-Circuit Current（A）	55+55+55			55+55+55+55
Max Operating PV Input Current（A）	36+36+36			36+36+36+36
No.of MPP Trackers/No.of String Per MPP Tracker	3/2+2+2			4/2+2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power（W）	29900	30000	35000	40000	50000
Max AC Input/Output Apparent Power （VA）	29900	33000	38500	44000	55000
Peak Power (off-grid)（W）	1.5 times of rated power,10s
Rated AC Input/Output Current（A）	45.4/43.4	45.5/43.5	53.1/50.8	60.7/58.0	75.8/72.5
Max AC Input/Output Current（A）	45.4/43.4	50/47.9	58.4/55.8	66.7/63.8	83.4/79.8
Max Continuous AC Passthrough (grid to load)（A）	200
Rated Input/Output Voltage/Range(V)	220/380V,230/400V 0.85Un-1.1Un 3L+N+PE
Rated Input/Output Grid Frequency/Range	50/45-55, 60/55-65
Power Factor Adjustment Range	0.8 leading-0.8 lagging
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5%ln
Efficiency
Max Efficiency	97.60%
Euro Efficiency	97.0%
MPPT Efficiency	＞99%
Equipment Protection
Integrated	DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output OvervoltageProtection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault CircuitInterrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection,Residual Current Detection
Surge Protection Level	TYPE II(DC), TYPE II(AC)
Interface
LCD/LED Display	LCD
Communication Interface	WIFI/RS485/CAN
Monitor Mode	GPRS/WIFI/Bluetooth/4G
General Data
Operating Temperature Range	-40℃+60℃,＞45℃ Derating
Permissible Ambient Humidity	0-100%
Permissible Altitude	3000m
Noise	≤ 65 dB(A)
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet size（WHD）[mm]	528793278（Excluding connectors and brackets）
Weight[kg]	65
Warranty	5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling	Intelligent air cooling
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

BOS-G Pro Deye Small-Scale C&l Battery

Industrial-Grade Safety
Engineered for Reliability

Deye Brand-new C&I Solution Available In Nigeria

Cell Chemistry	LiFePO₄
Module Energy	5.12 kWh
Module Nominal Voltage	51.2 V
Module Capacity	100 Ah
Battery Module Number Options	BOS – G25 Pro (5), BOS – G40 Pro (8), BOS – G60 Pro (12), BOS – G80 Pro (16)
System Energy	25.6 kWh (G25 Pro), 40.96 kWh (G40 Pro), 61.44 kWh (G60 Pro), 81.92 kWh (G80 Pro)
Rated DC Power	25.6 kW (G25 Pro), 40.96 kW (G40 Pro), 61.44 kW (G60 Pro), 81.92 kW (G80 Pro)
Working Temperature	Charge: 0 – 55°C; Discharge: – 20 – 55°C
Communication Port	CAN2.0 / RS485
IP Rating	IP20
Cycle Life	≥6000 cycles (25±2°C, 0.5C/0.5C, EOL70%)
Warranty	10 years
Certification	UN38.3 / CE / EMC / IEC62040 / CEC / VDE

SUN-60/70/75/80K-SG02HP3-EU-EM6

Deye Hybrid On Off Grid Inverter Available in Nigeria

Three Phase Hybrid Inverter | 60-80kW | 6 MPPT | HV Battery Supported

AC couple to retroﬁt existing solar system
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

Max. charging/discharging current of 160A
High voltage battery, higher efﬁciency
6 time periods for battery charging/discharging
Support storing energy from diesel generator

Model	SUN-60K-SG02HP3 -EU-EM6	SUN-70K-SG02HP3 -EU-EM6	SUN-75K-SG02HP3 -EU-EM6	SUN-80K-SG02HP3 -EU-EM6
Battery Input Data
Battery Type	Lithium-ion
Battery Voltage Range (V)	160-1000
Max. Charging Current (A)	80+80
Max. Discharging Current (A)	80+80
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of Battery Input	2
PV String Input Data
Max. PV Access Power (W)	120000	140000	150000	160000
Max. PV Input Power (W)	96000	112000	120000	128000
Max. PV Input Voltage (V)	1000
Start-up Voltage (V)	180
MPPT Voltage Range (V)	150-850
Rated PV Input Voltage (V)	650
Max. Operating PV Input Current (A)	36+36+36+36+36+36
Max. Input Short-Circuit Current (A)	54+54+54+54+54+54
No. of MPP Trackers/ No. of Strings MPP Tracker	6/2+2+2+2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W)	60000	70000	75000	80000
Max. AC Input/Output Apparent Power (VA)	66000	77000	82500	88000
Rated AC Input/Output Current (A)	91/87	106.1/101.5	113.7/108.7	121.3/115.9
Max. AC Input/Output Current (A)	100/95.7	116.7/111.6	125/119.6	133.4/127.6
Max. Continuous AC Passthrough (grid to load) (A)	200
Peak Power (off-grid) (W)	1.5 times of rated power, 10s
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V)	220/380V, 230/400V 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz)	50/45-55, 60/55-65
Grid Connection Form	3L+N+PE
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5% In
Eﬃciency
Max. Efﬁciency	98.70%
Euro Efﬁciency	98.1%
MPPT Efﬁciency	>99%
Equipment Protection
Integrated	DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level	TYPE II(DC),TYPE II(AC)
Interface
Communication Interface	RS485/RS232/CAN
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range (℃)	-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0-100%
Permissible Altitude	3000m
Noise (dB)	≤65
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC), OVC III(AC)
Cabinet Size (WxHxD mm)	606×927×314 (Excluding Connectors and Brackets)
Weight (kg)	105.0
Type of Cooling	Intelligent Air Cooling
Warranty	5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Grid Regulation	IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99,VDE-AR-N 4105
Safety / EMC Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

BOS-B Pro -Powering Smarter Businesses

Industrial-Grade Safety
Engineered for Reliability

Deye Brand-new C&I Solution Available In Nigeria

Module Capacity	314 Ah
Module Energy	16 kWh
Battery Module Qty in Series	5~16 (Optional)
Max. Continuous Charge Current	180 A
Max. Continuous Discharge Current	180 A
System Dimension (W×H×D)	2150 × 1305 × 800 mm (16 battery packs)
System Weight	2240 kg (16 battery packs)
Warranty	10 Years
Certification	CE, IEC62619, IEC62040, UN38.3

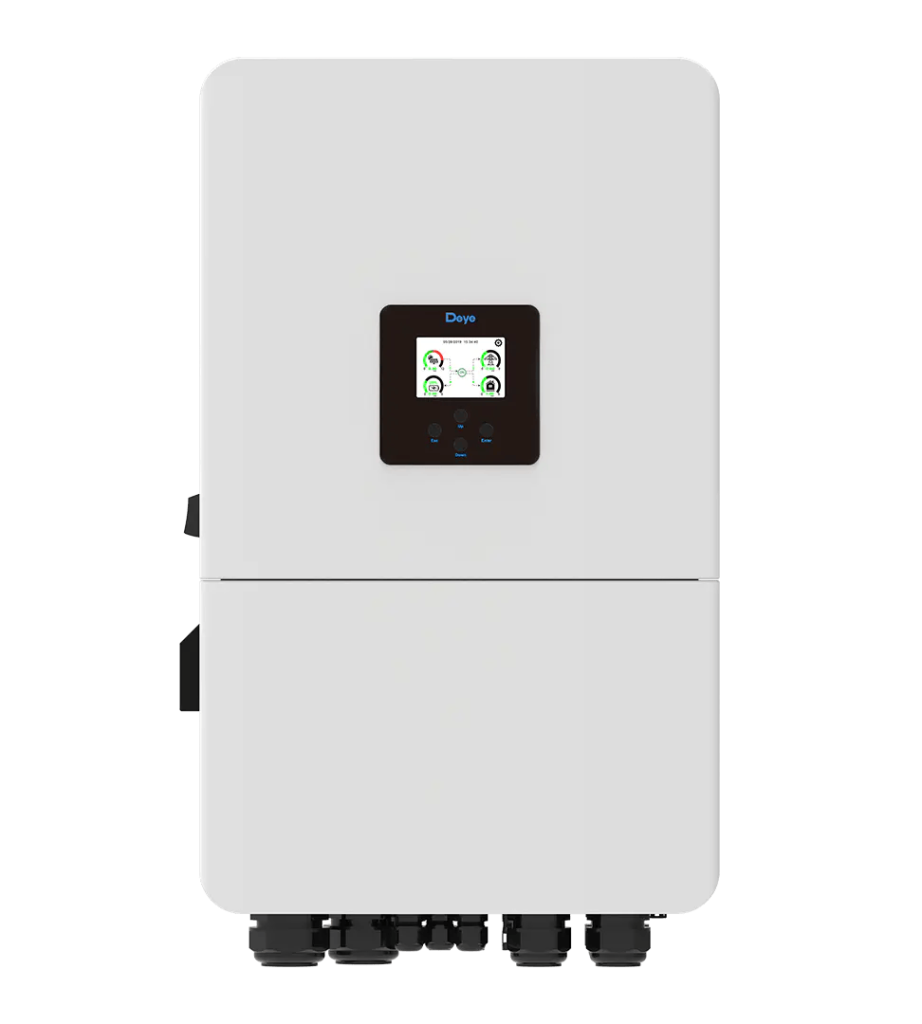

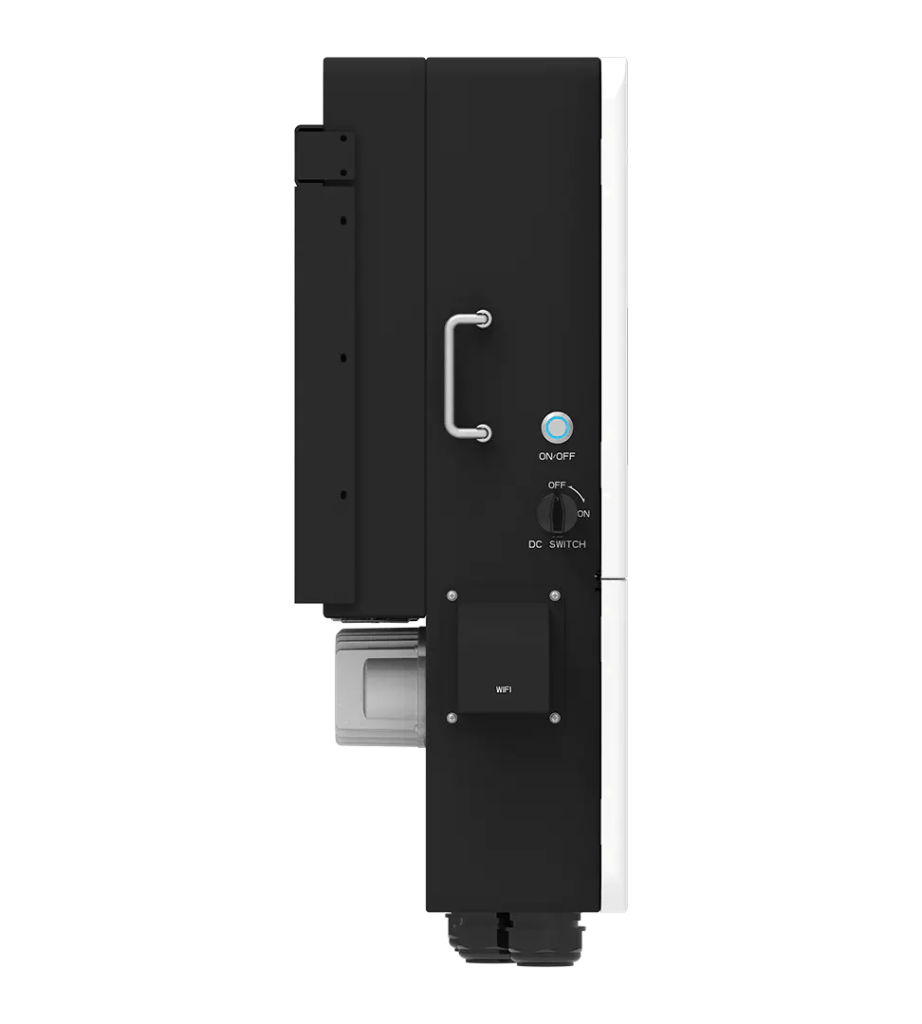

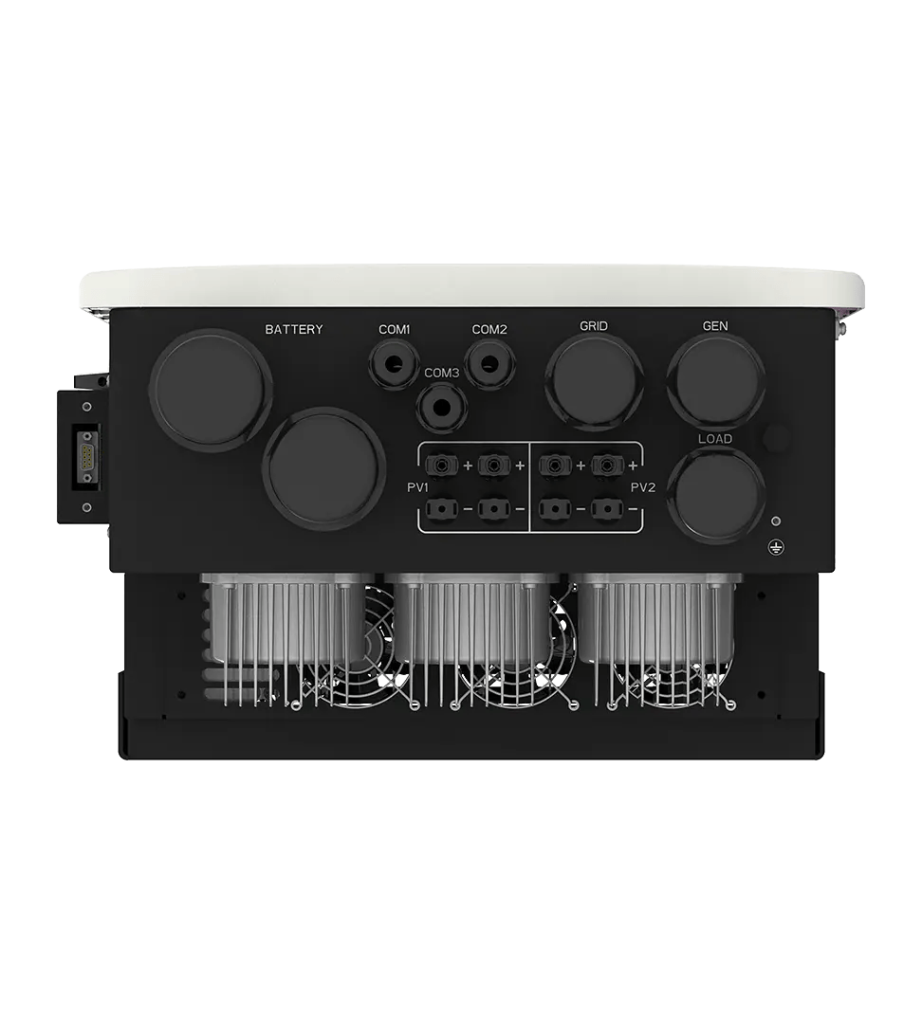

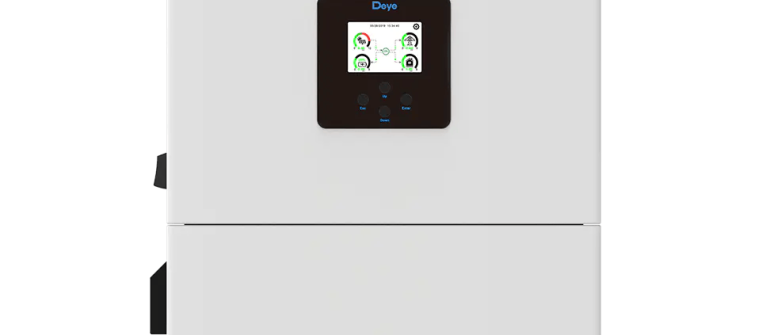

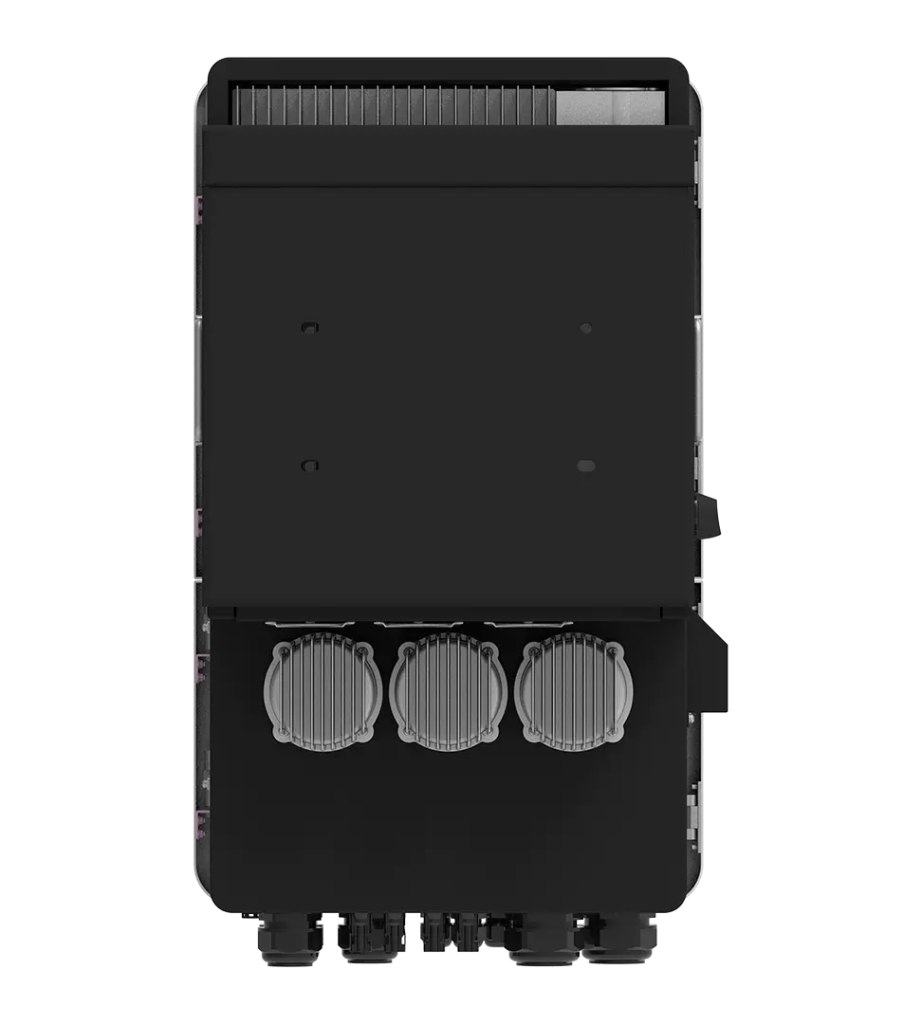

SUN-14/15/16/18/20K-SG05LP3-EU-SM2

Deye Hybrid On Off Grid Inverter Available in Nigeria

Three Phase Hybrid Inverter | 14-20kW | 2 MPPT | LV Battery Supported

100% unbalanced output, max. output up to 50% rated power for each phase
AC couple to retrofit existing solar system
Max. 10 pcs parallel for on-grid and off-gridoperation; support multiple batteries parallel

Max. charging/discharging current of 350A
Support storing energy from diesel generator
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging

Model	SUN-14K-SG05LP3 -EU-SM2	SUN-15K-SG05LP3 -EU-SM2	SUN-16K-SG05LP3 -EU-SM2	SUN-18K-SG05LP3 -EU-SM2	SUN-20K-SG05LP3 -EU-SM2
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40-60
Max. Charging/Discharging Current (A)	260	280	300	330	350
Charging Strategy forLi-ion Battery	Self-adaption to BMS
Number of Battery Input	2
PV String Input Data
Max. PV Access Power (W)	28000	30000	32000	36000	40000
Max. PV Input Power (W)	22400	24000	25600	28800	32000
Max. PV Input Voltage (V)	800
Start-up Voltage (V)	160
MPPT Voltage Range (V)	160-650
Rated PV Input Voltage (V)	550
Max. Operating PV Input Current (A)	36+36
Max. Input Short-Circuit Current (A)	54+54
No.of MPPT Trackers/ No.of Strings MPP Tracker	2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W)	14000	15000	16000	18000	20000
Max. AC Input/Output Apparent Power (VA)	15400	16500	17600	19800	22000
Rated AC Input/Output Current (A)	21.3/20.3	22.8/21.8	24.3/23.2	27.3/26.1	30.4/29
Max. AC Input/Output Current (A)	23.4/22.4	25/24	26.7/25.6	30/28.7	33.4/31.9
Max. Continuous AC Passthrough (grid to load) (A)	70
Peak Power (off-grid) (W)	2 times of rated power, 10s
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated Input/Output Voltage	220/380V, 230/400V 0.85Un-1.1Un 3L+N+PE
Rated Input/Output Grid Frequency/Range(Hz)	50/45-55, 60/55-65
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Component of Grid	<0.5% In
Eﬃciency
Max. Efﬁciency	97.6%
Euro Efﬁciency	97.0%
MPPTEfﬁciency	>99%
Equipment Protection
Integrated	DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional),Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch,DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
Surge Protection Level	TYPE II(DC),TYPE II(AC)
Interface
LCD/LED Display	LCD
Communication Interface	WIFI, RS485, CAN
General Data
Operating Temperature Range (℃)	-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0-100%
Permissible Altitude	3000m
Noise(dB)	＜60
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated (solar), Isolated (battery)
Over Voltage Category	OVC II(DC), OVC III(AC)
Cabinet Size (WxHxD mm)	456×750×268.5 (Excluding Connectors and Brackets)
Weight (kg)	51.9
Type of Cooling	Intelligent Air Cooling
Warranty	5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Grid Regulation	IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99,VDE-AR-N 4105
Safety / EMC Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Model	SUN-3K-SG05 LP3-EU-SM2	SUN-4K-SG05 LP3-EU-SM2	SUN-5K-SG05 LP3-EU-SM2	SUN-6K-SG05 LP3-EU-SM2	SUN-8K-SG05 LP3-EU-SM2	SUN-10K-SG05 LP3-EU-SM2	SUN-12K-SG05 LP3-EU-SM2
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40-60
Max. Charging/Discharging Current (A)	70	95	120	135	190	210	240
Charging Strategy forLi-ion Battery	Self-adaption to BMS
Number of Battery Input	1
PV String Input Data
Max. PV Access Power (W)	6000	8000	10000	12000	16000	20000	24000
Max. PV Input Power (W)	4500	6400	8000	9600	12800	16000	19200
Max. PV Input Voltage (V)	800
Start-up Voltage (V)	160
MPPT Voltage Range (V)	200-650
Rated PV Input Voltage (V)	550
Max. Operating PV Input Current (A)	20+20					26+26
Max. Input Short-Circuit Current (A)	30+30					39+39
No. of MPP Trackers/No. of Strings MPP Tracker	2/1+1					2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W)	3000	4000	5000	6000	8000	10000	12000
Max. AC Input/Output Apparent Power (VA)	3300	4400	5500	6600	8800	11000	13200
Rated AC Input/Output Current (A)	4.6/4.4	6.1/5.8	7.6/7.3	9.1/8.7	12.2/11.6	15.2/14.5	18.2/17.4
Max. AC Input/Output Current (A)	5/4.8	6.7/6.4	8.4/8	10/9.6	13.4/12.8	16.7/16	20/19.2
Max. Continuous AC Passthrough (grid to load) (A)	45
Peak Power (off-grid) (W)	2 times of rated power, 10s
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated Input/Output Voltage	220/380V, 230/400V 0.85Un-1.1Un 3L+N+PE
Rated Input/Output Grid Frequency/Range(Hz)	50/45-55, 60/55-65
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5% In
Eﬃciency
Max. Efﬁciency	97.6%
Euro Efﬁciency	97.0%
MPPT Efﬁciency	>99%
Equipment Protection
Integrated	DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level	TYPE II(DC),TYPE II(AC)
Interface
LCD/LED Display	LCD
Communication Interface	WIFI,RS485,CAN
General Data
Operating Temperature Range (℃)	-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0-100%
Permissible Altitude	3000m
Noise (dB)	≤55
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated (solar), Isolated (battery)
Over Voltage Category	OVC II(DC), OVC III(AC)
Cabinet Size (WxHxD mm)	386×660×250 (Excluding Connectors and Brackets)
Weight (kg)	35.2
Type of Cooling	Intelligent Air Cooling
Warranty	5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Grid Regulation	IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25,G99,VDE-AR-N 4105
Safety / EMC Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

SE-F5 / SE-F12 / SE-F16

Deye Brand-new Residential Solution

LIGHTWEIGHT DESIGN
FLEXIBLE INSTALLATION OPTIONS

5kwh / 12Kwh / 16Kwh Deye Batteries Available in Nigeria

Comprehensive Protection

Advanced BMS with active fuse

Flexible Expansion

Max.32 units in parallel

Superior Performance

Support Max.1C charge &1.2C discharge (SE-F5 &F5 Plus),GaN MOSFETs:50%loss reduction, high-temp resistance

Easy Maintenance

Auto-networking,Local monitoring mode for battery,remote monitoring mode for ESS

Optimized Energy Density

Integrated PACK:reduced line loss, enhanced energy density

Reliable Durability

Operates reliably in -20℃to 55℃, natural cooling

Model	SE-F16
Battery Chemistry	LiFePO₄
Nominal Capacity	314 Ah
Nominal Energy	16 kWh
Nominal Voltage	51.2 V
Operating Voltage	44.8 V – 57.6 V
Max. Cont. Charge Current	160 A
Max. Cont. Discharge Current	230 A
Peak Discharge Current	280 A (10 sec)
Dimensions (W×H×D)	400 × 708 × 233 mm (Without hanging board)
Weight Approximate	109 kg
Recommended DoD	90%
Cycle Life	>6000 cycles (25°C±2°C, 70%EOL)
IP Rating	IP21
Operating Temperature	Charge: 0~55°C / Discharge: -20°C~55°C
Communication	CAN2.0, RS485, Bluetooth+APP
Scalability	Max 32 pcs in parallel (Max. 64 pcs can parallel with CAN-Bridge)
Warranty	5 years / 10 years (extended)
Certifications	UN38.3, MSDS

Model	SE-F12
Scalability	Max 32 pcs in parallel (Max. 64 pcs can parallel with CAN-Bridge)
Nominal Energy	11.8 kWh
Voltage Range	44.8 V ~ 57.6 V
Max. Continuous Current	230 A
Peak Current	280 A (10 seconds)
Cycle Life	6,000+ cycles at 80% DoD
Dimensions	400 × 583 × 232 mm
Weight	84kg

Model	SE-F5
Capacity	100 Ah
Scalability	Max 32 pcs in parallel (Max. 64 pcs can parallel with CAN-Bridge)
Nominal Voltage	51.2 V
Operating Voltage	44.8 V – 57.6 V
Nominal Energy	5.12 kWh
Charge Current – Max Continuous	100 A
Charge Current – Peak	120 A (10 sec)
Discharge Current – Max Continuous	120 A
Discharge Current – Peak	150 A (10 sec)
Recommended Depth of Discharge	80% DoD
Dimension (W × H × D) (Without hanging board)	370 × 548 × 140 mm
Weight Approximate	41 kg
LED Indicator	LED (SOC, working, protecting) & Buzzer
IP Rating of Enclosure	IP21
Operating Temperature	Charge: 0 – 55℃ / Discharge: -20 – 55℃
Storage Temperature	0 – 35℃
Relative Humidity	95% (non-condensing)
Altitude	≤3000m
Cycle Life	≥6000 (25℃±2℃, 70% EOL)
Installation	Wall-Mounted, Floor-Mounted, Stack-Mounted
Communication	CAN2.0, RS485, Bluetooth+APP
Warranty Period	5 years
Energy Throughput	8 MWh
Certification	UN38.3, MSDS, CE, CB

SUN-3/3.6/4/5/6/6.6K-OG03LP1-EU-AM1/AM2

Deye Hybrid Off Grid Inverter Available in Nigeria

Lighter, Simpler, More Affordable.

Lightweight Design for Easy Installation
2× PV Oversizing Capability
Up to 97.6% Conversion Efficiency
Max. 140A Charge/Discharge Current
Compatible with 18A PV Modules
4ms On/Off-Grid Switching
Cost-Effective and Easy to Use

Model	SUN-3K-OG03LP1 -24-EU-AM1	SUN-3K-OG03LP1 -EU-AM1	SUN-3.6K-OG03LP1-EU-AM1	SUN-4K-OG03LP1-EU-AM1	SUN-5K-OG03LP1-EU-AM2	SUN-6K-OG03LP1-EU-AM2	SUN-6.6K-OG03LP1-EU-AM2
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	20-30	40-60
Max. Charging/Discharging Current (A)	135	70	90	95	120	135	140
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of Battery Input	1
PV String Input Data
Max. PV Access Power (W)	6000		7200	8000	10000	12000	13200
Max. PV Input Power (W)	4800		5760	6400	8000	9600	10560
Max. PV Input Voltage (V）	500
Start-up Voltage (V)	125
MPPT Voltage Range(V）	150-425
Rated PV Input Voltage (V)	370
Max. Operating PV Input Current (A）	18				18+18
Max. Input Short-Circuit Current (A)	27				27+27
No. of MPP Trackers/No. of Strings MPP Tracker	1/1				2/1+1
AC Output Data
Rated AC Output Power (VA/W)	3000		3600	4000	5000	6000	6600
Max. AC Output Power (VA/W)	3000		3600	4000	5000	6000	6600
Max. AC Output Current (A)	13.1		15.7	17.4	21.8	26.1	28.7
Peak Power (W）	2 times of rated power, 10s
Rated Output Voltage (V)	230 L+N+PE
Rated Output Frequency	50Hz / 60Hz
Output Voltage Waveform	Pure Sine Wave
Total Current Harmonic Distortion THDi	＜3%
AC Input Date(Grid and Generator)
Max. Input Power to Battery (W)	3000		3600	4000	5000	6000	6600
Rated Input Voltage (V）	230
Rated Input Frequency	50Hz / 60Hz
Gird Input Current (A)	35
Generator Input Current (A)	35
Eﬃciency
Max. Eﬃciency	97.60%
Euro Eﬃciency	96.50%
MPPT Eﬃciency	>99%
Equipment Protection
Integrated	DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc fault circuit interrupter (AFCI) (Optional), Insulation Impedance Detection
Surge Protection Level	TYPE II(DC), TYPE II(AC)
Interface
LCD/LED Display	LCD
Communication Interface	WIFI/RS485/CAN
General Data
Operating Temperature Range (℃)	-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0-100%
Permissible Altitude	3000m
Noise (dB)	<46
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated (solar), Isolated (battery)
Over Voltage Category	OVC II(DC), OVC III(AC)
Cabinet Size (WxHxD mm)	323×424×176 (Excluding Connectors and Brackets)
Weight (kg）	8.6
Type of Cooling	Intelligent Air Cooling
Warranty	Standard 5 years, extended warranty
Safety / EMC Standard	IEC62109-1/2, EN61000-6-6, EN61000-6-3, EN61000-6-4

Deye Hybrid On Off Grid Inverter Available in Nigeria

Industrial-Grade SafetyEngineered for Reliability

Deye Brand-new C&I Solution Available In Nigeria

Deye Hybrid On Off Grid Inverter Available in Nigeria

Industrial-Grade SafetyEngineered for Reliability

Deye Brand-new C&I Solution Available In Nigeria

Deye Hybrid On Off Grid Inverter Available in Nigeria

Deye Brand-new Residential Solution

Deye Hybrid Off Grid Inverter Available in Nigeria

Industrial-Grade Safety
Engineered for Reliability

Industrial-Grade Safety
Engineered for Reliability
